Implementation of DHCP Routing using Packet Tracer

ibnsina August 30, 2024






 DHCP (Dynamic Host Configuration Protocol) and routing are separate functionalities but can work together in a network. Packet Tracer allows you to simulate this configuration. Here's a breakdown of how to implement it:

Topology Setup:

  1. Devices:

    • Router (Cisco router model is common)
    • Switch (Optional, but useful for connecting multiple clients)
    • PCs (Clients requesting IP addresses)

  2. Connections:

    • Connect the router to the switch (if using one).
    • Connect the switch (or directly to the router if not using a switch) to the PCs.

Configuration:

  1. Router Configuration:

    • Assign an IP address and subnet mask to the router interface connected to the LAN (switch or PCs).
    • Configure DHCP service on the router interface.
      • Define a pool of IP addresses to be leased to clients.
      • Set the subnet mask and default gateway for the clients (usually the router's LAN interface IP).
      • Optionally, configure DNS server addresses for clients.

  2. PC Configuration (Optional): By default, most Packet Tracer PC network settings are DHCP enabled. You can verify this by going to the PC's "Desktop" tab and checking the IP configuration. If not enabled by default, set the Network Adapter settings to "Obtain an IP address automatically" and "Obtain DNS server address automatically".

Simulating and Verification:

  1. Power on all the devices in your topology.

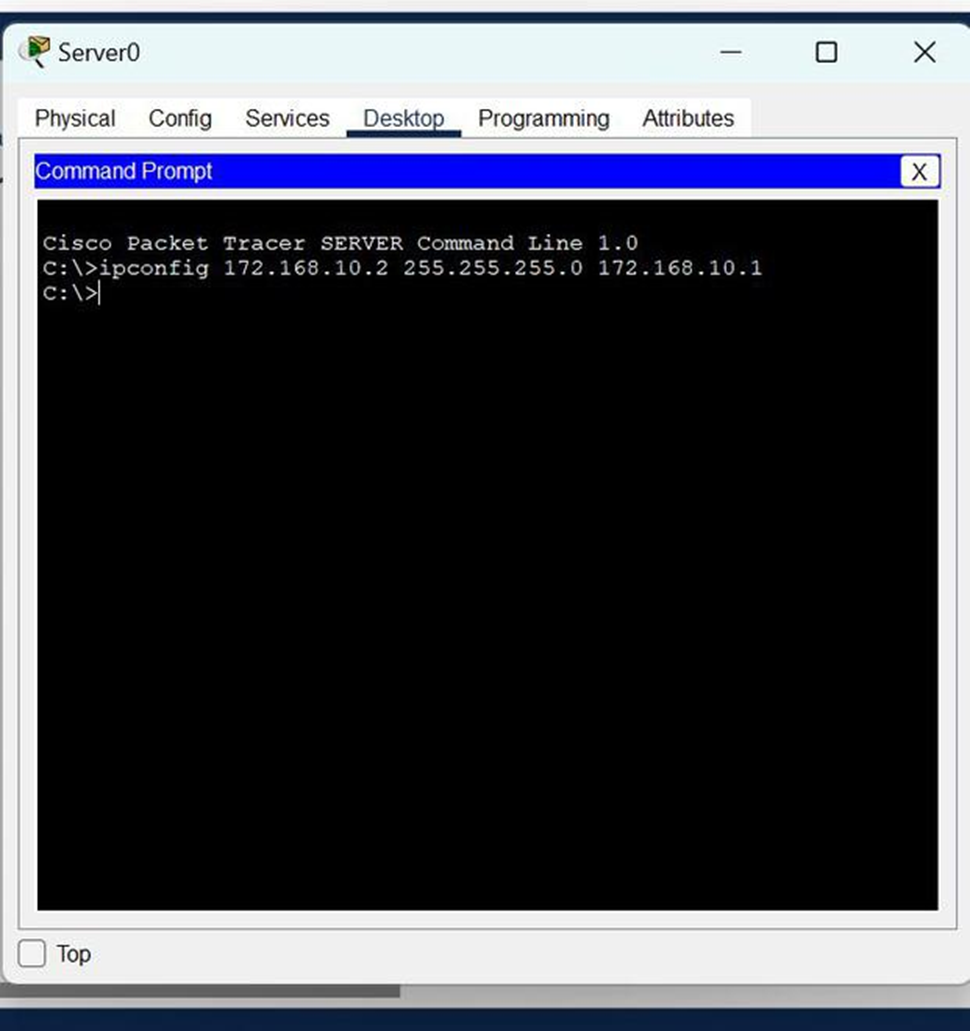

  2. Verify the DHCP lease on the PCs. You can do this by opening a command prompt on the PC and typing ipconfig (Windows) or ifconfig (Mac/Linux). The output should show the IP address, subnet mask, default gateway, and DNS server (if configured) obtained through DHCP.

  3. Test connectivity between the PCs. You can ping each other's IP addresses to verify network communication.

Additional Notes:

  • You can find detailed configuration steps with screenshots for specific router models by searching online for "[Packet Tracer configure DHCP router model name]". For example, "[Packet Tracer configure DHCP Cisco 1841]".
  • Packet Tracer provides a helpful visual representation of the network traffic. You can use the "Capture Packet" feature to observe DHCP communication between the client and server.

By following these steps, you can implement DHCP routing in Packet Tracer and learn how these protocols work together to provide automatic IP address assignment and network connectivity for clients.






Lab Report: Implementation of DHCP Routing using Packet Tracer

Objective

The objective of this lab report is to demonstrate the implementation of Dynamic Host Configuration Protocol (DHCP) routing using Cisco Packet Tracer. The report will cover the theoretical background of DHCP, the steps involved in configuring a DHCP server and client, and a practical example of setting up DHCP routing in a network.

Theory

DHCP Overview

Dynamic Host Configuration Protocol (DHCP) is a network management protocol used to automatically assign IP addresses and other network configuration parameters to devices (clients) on a network. This eliminates the need for manual configuration of IP addresses, thus simplifying network management.

DHCP Components

  1. DHCP Server: Assigns IP addresses and other network settings to DHCP clients.
  2. DHCP Client: Receives an IP address and configuration information from the DHCP server.
  3. DHCP Discover: A broadcast message sent by a client to locate available DHCP servers.
  4. DHCP Offer: A message sent by a DHCP server in response to a DHCP Discover, offering an IP address to the client.
  5. DHCP Request: A message sent by the client to request the offered IP address.
  6. DHCP Acknowledgment (ACK): A message sent by the DHCP server to confirm the IP address assignment to the client.

Materials and Methods

Materials

  • Cisco Packet Tracer software
  • Basic knowledge of networking concepts
  • Network topology design

Methods

  1. Create Network Topology:

    • Use Cisco Packet Tracer to create a network topology with at least one router, one switch, and multiple PCs.

  2. Configure the DHCP Server:

    • Set up a router to function as a DHCP server.
    • Define DHCP pools with network addresses, subnet masks, default gateways, and DNS servers.

  3. Configure DHCP Relay (if needed):

    • If the DHCP server is not on the same network as the clients, configure DHCP relay on the router to forward DHCP messages between clients and the server.

  4. Configure DHCP Clients:

    • Set the PCs to obtain IP addresses automatically via DHCP.

  5. Verify DHCP Operation:

    • Check the IP addresses assigned to the PCs to ensure they are within the defined DHCP pool.

Step-by-Step Procedure

Step 1: Create Network Topology

  1. Open Cisco Packet Tracer.
  2. Create a simple network topology with one router, one switch, and three PCs.

Step 2: Configure the Router as a DHCP Server

  1. Click on the router and go to the CLI tab.

  2. Enter the following commands to configure the DHCP server:



    Router> enable
Router# configure terminal
Router(config)# interface g0/0
Router(config-if)# ip address 192.168.1.1 255.255.255.0
Router(config-if)# no shutdown
Router(config-if)# exit
Router(config)# ip dhcp pool NET_A
Router(dhcp-config)# network 192.168.1.0 255.255.255.0
Router(dhcp-config)# default-router 192.168.1.1
Router(dhcp-config)# dns-server 8.8.8.8
Router(dhcp-config)# exit
Router(config)# ip dhcp excluded-address 192.168.1.1 192.168.1.10

  3. Save the configuration:



    Router(config)# end
Router# write memory

Step 3: Configure DHCP Relay (if needed)

  1. If the DHCP server is on a different network, configure the relay on the router:



    Router(config)# interface g0/1
Router(config-if)# ip address 192.168.2.1 255.255.255.0
Router(config-if)# no shutdown
Router(config-if)# ip helper-address 192.168.1.1

Step 4: Configure DHCP Clients

  1. Click on each PC and go to the Desktop tab.
  2. Click on IP Configuration.
  3. Select "DHCP" to obtain an IP address automatically.

Step 5: Verify DHCP Operation

  1. On each PC, check the IP address assigned by the DHCP server.
  2. Verify that the IP addresses are within the range defined by the DHCP pool.

Results

After completing the above steps, the PCs should receive IP addresses automatically from the DHCP server. For example:

  • PC1: 192.168.1.11
  • PC2: 192.168.1.12
  • PC3: 192.168.1.13

These IP addresses fall within the range defined by the DHCP pool (192.168.1.11 to 192.168.1.254).

Verification

To verify the successful implementation of DHCP, use the following commands on the router:


Router# show ip dhcp binding

This command displays the IP addresses assigned by the DHCP server to the clients.

Discussion

The implementation of DHCP routing simplifies network management by automating the IP address assignment process. This reduces the likelihood of IP address conflicts and ensures that network devices are configured correctly. The practical example demonstrated how to set up a DHCP server and clients using Cisco Packet Tracer, highlighting the benefits of DHCP in a network environment.

Benefits of DHCP

  • Automatic IP Address Assignment: Reduces manual configuration efforts.
  • Efficient IP Management: Ensures efficient use of available IP addresses.
  • Scalability: Easily accommodates new devices joining the network.

Conclusion

The lab demonstrated the implementation of DHCP routing using Cisco Packet Tracer. By configuring a router as a DHCP server and setting up clients to obtain IP addresses automatically, we illustrated the process and benefits of DHCP. This lab reinforced the importance of DHCP in modern network management, highlighting its role in automating IP address assignment and improving network efficiency.

References

  • Cisco Systems, Inc. (n.d.). Configuring DHCP. Retrieved from https://www.cisco.com
  • Odom, W. (2016). CCNA Routing and Switching ICND2 200-105 Official Cert Guide. Cisco Press.
