Introduction
Variable Length Subnet Masking (VLSM) is a powerful technique in IP address allocation that allows networks to be divided into subnets of varying sizes, catering to diverse requirements while minimizing address wastage. Unlike Fixed-Length Subnet Masking (FLSM), which creates equal-sized subnets, VLSM provides the flexibility to allocate just enough IP addresses to each subnet based on its specific needs.
In this lab report, we implement VLSM in a simulated network using Cisco Packet Tracer. The primary objective is to optimize the use of IPv4 address space by assigning appropriate subnet sizes to different network segments. This approach ensures efficient address utilization and demonstrates the practicality of VLSM in real-world scenarios, such as corporate networks and large-scale deployments.
Objectives of the Lab
- To understand the principles of Variable Length Subnet Masking (VLSM).
- To design and configure a network topology using VLSM in Cisco Packet Tracer.
- To analyze and validate the efficient use of IP addresses through VLSM.
Fundamentals of VLSM
- What is VLSM?
VLSM allows the use of different subnet masks within the same network, enabling networks to allocate IP address space more effectively. - Key Benefits:
- Optimizes IP address usage.
- Provides scalability for networks of varying sizes.
- Reduces address wastage compared to FLSM.
- How it Works:
- Start with the largest subnet and assign a subnet mask.
- Divide the remaining address space into smaller subnets as needed.
Network Design and Configuration
- Scenario:
A company has the following network requirements:- HR Department: 50 hosts.
- IT Department: 100 hosts.
- Admin Department: 20 hosts.
- Guest Network: 10 hosts.
- Given Network Address:
192.168.1.0/24
. - Steps:
- Calculate subnets using VLSM.
- Configure the subnets in Cisco Packet Tracer.
- Verify connectivity.
Step 1: Calculate Subnet Sizes
For each department, determine the number of usable IP addresses needed and select the appropriate subnet mask based on the nearest power of 2:
HR Department:
- Hosts needed: 50.
- Nearest power of 2: .
- Subnet mask:
/26
(Subnet size = 64, usable = 62).
IT Department:
- Hosts needed: 100.
- Nearest power of 2: .
- Subnet mask:
/25
(Subnet size = 128, usable = 126).
Admin Department:
- Hosts needed: 20.
- Nearest power of 2: .
- Subnet mask:
/27
(Subnet size = 32, usable = 30).
Guest Network:
- Hosts needed: 10.
- Nearest power of 2: .
- Subnet mask:
/28
(Subnet size = 16, usable = 14).
Step 3: Verify IP Allocation
Summary
- Total Addresses Available: 256 (from
192.168.1.0/24
). - Total Addresses Used:
- IT: 128 (1 subnet).
- HR: 64 (1 subnet).
- Admin: 32 (1 subnet).
- Guest: 16 (1 subnet).
- Remaining Addresses: 16 (from
192.168.1.240 - 192.168.1.255
)
Network Requirements and VLSM Subnet Calculation
Network Topology Recap
- Router 0 (R0): Connected to the
192.168.10.0/26
network (PC0 and PC1). - Router 1 (R1): Connected to the
192.168.10.64/27
network (PC2). - Router 2 (R2): Connected to the
192.168.10.96/30
network (PC3).
Given Network Address: 192.168.10.0/24
Subnet Calculation
Subnet 1 (
192.168.10.0/26
):- Hosts needed: Up to 62.
- Subnet mask:
/26
(255.255.255.192). - Subnet size: 64 IPs.
- Usable IP range:
192.168.10.1 - 192.168.10.62
.
Subnet 2 (
192.168.10.64/27
):- Hosts needed: Up to 30.
- Subnet mask:
/27
(255.255.255.224). - Subnet size: 32 IPs.
- Usable IP range:
192.168.10.65 - 192.168.10.94
.
Subnet 3 (
192.168.10.96/30
):- Hosts needed: 2.
- Subnet mask:
/30
(255.255.255.252). - Subnet size: 4 IPs.
- Usable IP range:
192.168.10.97 - 192.168.10.98
.
Subnet 4 (
192.168.10.100/30
):- Hosts needed: 2 (inter-router link).
- Subnet mask:
/30
(255.255.255.252). - Subnet size: 4 IPs.
- Usable IP range:
192.168.10.101 - 192.168.10.102
.
Subnet 5 (
192.168.10.104/30
):- Hosts needed: 2 (inter-router link).
- Subnet mask:
/30
(255.255.255.252). - Subnet size: 4 IPs.
- Usable IP range:
192.168.10.105 - 192.168.10.106
.
3. VLSM Subnet Table

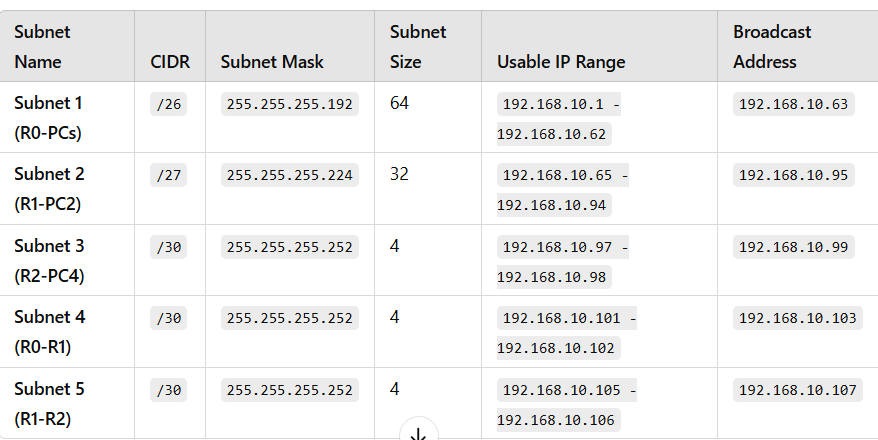

Subnet Name | CIDR | Subnet Mask | Subnet Size | Usable IP Range | Broadcast Address |
---|---|---|---|---|---|
Subnet 1 (R0-PCs) | /26 | 255.255.255.192 | 64 | 192.168.10.1 - 192.168.10.62 | 192.168.10.63 |
Subnet 2 (R1-PC2) | /27 | 255.255.255.224 | 32 | 192.168.10.65 - 192.168.10.94 | 192.168.10.95 |
Subnet 3 (R2-PC4) | /30 | 255.255.255.252 | 4 | 192.168.10.97 - 192.168.10.98 | 192.168.10.99 |
Subnet 4 (R0-R1) | /30 | 255.255.255.252 | 4 | 192.168.10.101 - 192.168.10.102 | 192.168.10.103 |
Subnet 5 (R1-R2) | /30 | 255.255.255.252 | 4 | 192.168.10.105 - 192.168.10.106 | 192.168.10.107 |
4. Static Routing Configuration
Below are the static routes configured on each router to enable communication between the subnets:
Router 0 (R0):
Router 1 (R1):
Router 2 (R2):
5. Verification
To verify network connectivity, the ping
command was used:
- From PC0 (
192.168.10.2
), ping PC2 (192.168.10.66
). - From PC0, ping PC4 (
192.168.10.98
). - Ensure replies are received, confirming that the static routes and VLSM implementation are functioning as expected.
