Smtp ,ftp ,http, email,dns web configuration with cisco packet tracer

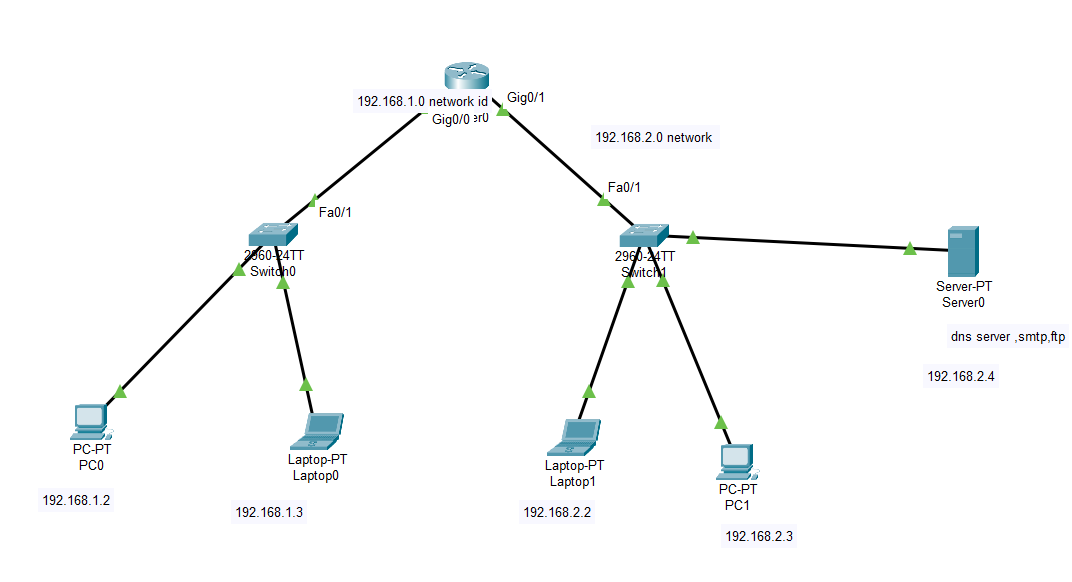

This network topology consists of two subnetworks:

1. 192.168.1.0/24 Network:

   • Connected to Switch0.
   • Includes PC0 (192.168.1.2) and Laptop0 (192.168.1.3).

2. 192.168.2.0/24 Network:

   • Connected to Switch1.
   • Includes PC1 (192.168.2.3), Laptop1 (192.168.2.2), and Server0 (192.168.2.4).

The DNS, SMTP, and FTP services are hosted on Server0 (192.168.2.4). Below is a brief overview of configuring these services in Cisco Packet Tracer:

---

1. DNS Configuration

DNS translates domain names into IP addresses.

Steps:

• Go to the Server0 configuration.
• Select the Services tab.
• Enable the DNS service.
• Add records for the devices by mapping hostnames to their respective IP addresses. For example:
  • pc0 -> 192.168.1.2
  • laptop0 -> 192.168.1.3
  • pc1 -> 192.168.2.3
  • laptop1 -> 192.168.2.2

---

2. SMTP Configuration

SMTP (Simple Mail Transfer Protocol) is used to send emails.

Steps:

• On Server0, go to the Services tab.
• Enable the Email service.
• Configure a domain (e.g., example.com) and add user accounts for email clients. Example:
  • User1: user1@example.com with a password.
  • User2: user2@example.com with a password.

Client-Side Configuration:

• Configure email clients (e.g., PC0, Laptop0) to connect to the server's IP (192.168.2.4) as the SMTP and POP3 server.

---

3. FTP Configuration

FTP (File Transfer Protocol) is used for file sharing.

Steps:

• On Server0, go to the Services tab.
• Enable the FTP service.
• Add user accounts for FTP access (username and password).
• Ensure devices like PC0 or Laptop1 are configured with an FTP client to connect to Server0 using the FTP service.

---

Connectivity Notes

• Make sure the Default Gateway for each subnetwork is configured correctly on the end devices.
  • For 192.168.1.0/24, the default gateway is 192.168.1.1.
  • For 192.168.2.0/24, the default gateway is 192.168.2.1.
• Ensure that routing is configured between the two subnets, allowing communication between clients and Server0.
